Raise error step

In your action flow you might want to stop and the action and raise an error to inform the user, this step has you covered.

Updated over a week ago

After reading this article you'll learn how to:

  • Install the raise error step from the block store

  • Configure the raise error step

  • Use the step in practice

Starting off

The raise error step is created by Betty Blocks, but it's not readily available in the standard set of steps within the action builder. But that doesn't matter, you can find it and install it from the block store. To do this navigate to the block store and search for 'raise error' it will pop up as the first hit.

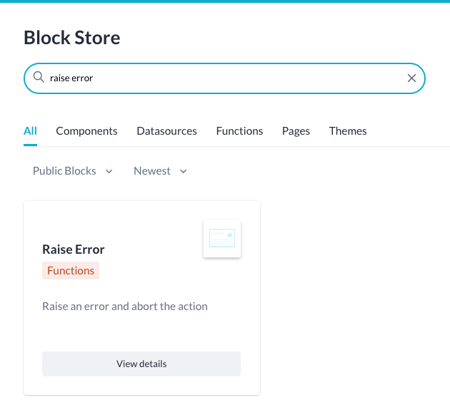

Raise error block in the block store

Click on view details to check out what the block is about. In our case, the step will raise an error and abort the action. This tab also lets you install the block into one of your applications. Simply hit the Install block button and select your organization followed by your application.

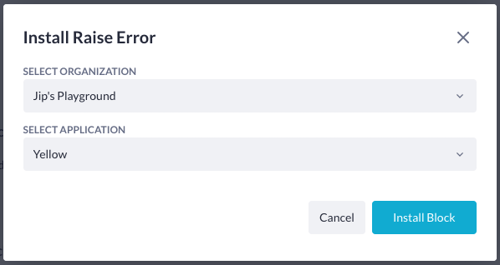

Raise error block installation

After installing the 'raise error' step, it can be found in your action builder of the application that was selected. You'll find it in the flow section of the action steps.

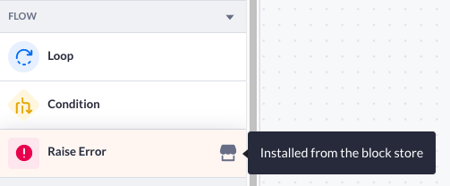

Installed raise error block

Configuring the step

The configuration of the raise error step is one of the most straightforward configurations out there. There are two ways to configure the step. The first one is by displaying the contents of a variable. The second one is by providing a message that you write yourself.

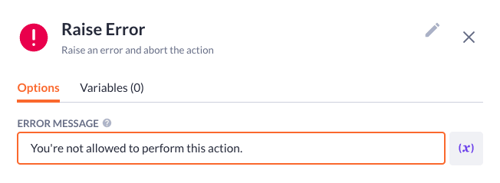

Filling in the message in the raise error

You can use the step as an actual error - in, for example, a form. In this example, I have a form that simply creates a new product with a name. It'll check if I'm allowed to perform this action; if not it raises an error if it does it'll create the product and generate a document.

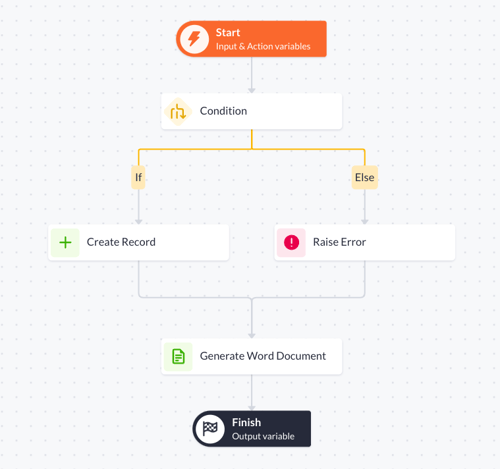

Condition flow with an 'else' raise error outcome

So how does that work if I'm not allowed to perform the action, thus triggering the raise error step? Well, this is what will happen in this use case:

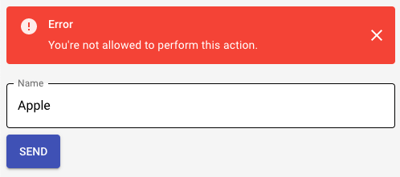

Example of a created error on the front end page

Voila, there is the message from our raise error step. This also means that the action has been aborted thus the 'Apple' is not created.
